- 規格型號：68576449
- 頻率：40.0000M
- 尺寸：7050mm
- 產品描述：3HTF57-ET-40.000-PD-AL,LVCMOS輸出晶振,Mercury臺產晶振,40.000MHz精準頻率為設備運行提供穩定時序保障,避免因時鐘漂移導致的性能故障.寬溫工作范圍搭配PD封裝設計,可輕松適配不同安裝空間.

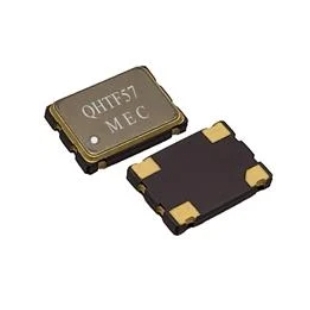

3HTF57-ET-40.000-PD-AL,LVCMOS輸出晶振,Mercury臺產晶振
.png)
.png)
3HTF57-ET-40.000-PD-AL,LVCMOS輸出晶振,Mercury臺產晶振
源自Mercury臺灣生產基地的3HTF57-ET-40.000-PD-AL晶振,是臺產精密元器件的優質之選.采用LVCMOS輸出標準,信號傳輸穩定且功耗更低,40MHz固定頻率可直接匹配主流設備時鐘需求.產品經過嚴格的出廠檢測,從原材料甄選到生產制程均遵循高標準規范,PD封裝兼具小型化與高可靠性特點,鋁合金外殼有效隔絕外部電磁干擾,適用于智能家居,汽車電子,物聯網終端等復雜應用環境.
.png)
3HTF57-ET-40.000-PD-AL,LVCMOS輸出晶振,Mercury臺產晶振
| 原廠型號 Originalmodel： | 3HTF57-ET-40.000-PD-AL | 品牌brand： | Mercury |
| Manufacturer品牌 | Mercury | OperatingTemperature溫度 | -40°C ~ 85°C |
| Series型號 | 3HTF57 | Current-Supply(Max) | - |
| Type類型 | XO汽車藍牙音響晶振 | PackageHeight高度 | 1.3mm |
| Frequency頻率 | 40M | Termination 腳位 | 4-pad |
| 輸出方式 Output： | LVCMOS輸出 | PackageType 封裝類型 | 4-smd |
| Voltage-Supply電壓 | 3.3V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±50ppm | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 7050mm | 最小包裝數MPQ： | 1000 |
.png)
3HTF57-ET-40.000-PD-AL,LVCMOS輸出晶振,Mercury臺產晶振
3HTF57-ET-40.000-PD-AL,LVCMOS輸出晶振,Mercury臺產晶振
| ABDFTCXO-10.000MHZ-E-2-CT | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-10.000MHZ-E-2-T2 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-10.000MHZ-E-2-T5 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-10.000MHZ-L-2-CT | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-10.000MHZ-L-2-T2 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-10.000MHZ-L-2-T5 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-12.800MHZ-E-2-CT | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-12.800MHZ-E-2-T2 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-12.800MHZ-E-2-T5 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-12.800MHZ-L-2-CT | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-12.800MHZ-L-2-T2 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-12.800MHZ-L-2-T5 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-16.000MHZ-E-2-CT | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-16.000MHZ-E-2-T2 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-16.000MHZ-E-2-T5 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-16.000MHZ-L-2-CT | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-16.000MHZ-L-2-T2 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-16.000MHZ-L-2-T5 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-16.384MHZ-E-2-CT | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-16.384MHZ-E-2-T2 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-16.384MHZ-E-2-T5 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-16.384MHZ-L-2-CT | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-16.384MHZ-L-2-T2 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-16.384MHZ-L-2-T5 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-19.200MHZ-E-2-CT | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-19.200MHZ-E-2-T2 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-19.200MHZ-E-2-T5 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-19.200MHZ-L-2-CT | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-19.200MHZ-L-2-T2 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-19.200MHZ-L-2-T5 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-19.440MHZ-E-2-CT | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-19.440MHZ-E-2-T2 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-19.440MHZ-E-2-T5 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-19.440MHZ-L-2-CT | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-19.440MHZ-L-2-T2 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-19.440MHZ-L-2-T5 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-20.000MHZ-E-2-CT | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-20.000MHZ-E-2-T2 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-20.000MHZ-E-2-T5 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-20.000MHZ-L-2-CT | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-20.000MHZ-L-2-T2 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-20.000MHZ-L-2-T5 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-24.576MHZ-E-2-CT | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-24.576MHZ-E-2-T2 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-24.576MHZ-E-2-T5 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-24.576MHZ-L-2-CT | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-24.576MHZ-L-2-T2 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-24.576MHZ-L-2-T5 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-25.000MHZ-E-2-CT | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-25.000MHZ-E-2-T2 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-25.000MHZ-E-2-T5 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-25.000MHZ-L-2-CT | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-25.000MHZ-L-2-T2 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-25.000MHZ-L-2-T5 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-26.000MHZ-E-2-CT | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-26.000MHZ-E-2-T2 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-26.000MHZ-E-2-T5 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-26.000MHZ-L-2-CT | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-26.000MHZ-L-2-T2 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
| ABDFTCXO-26.000MHZ-L-2-T5 | Abracon | ABDFTCXO | TCXO | 14.2mm | 9.15mm | 3.1mm |
