規格型號：42246987
頻率：24 MHz
尺寸：3225mm
PDF
產品描述：1XTW24000FCA,DSB321SCL晶振,低功耗藍牙模塊晶振,24MHz輸出頻率為模塊的射頻收發,協議解析等核心功能提供穩定時鐘保障,頻率精度高,溫漂小,在極端溫度環境下仍能穩定工作.

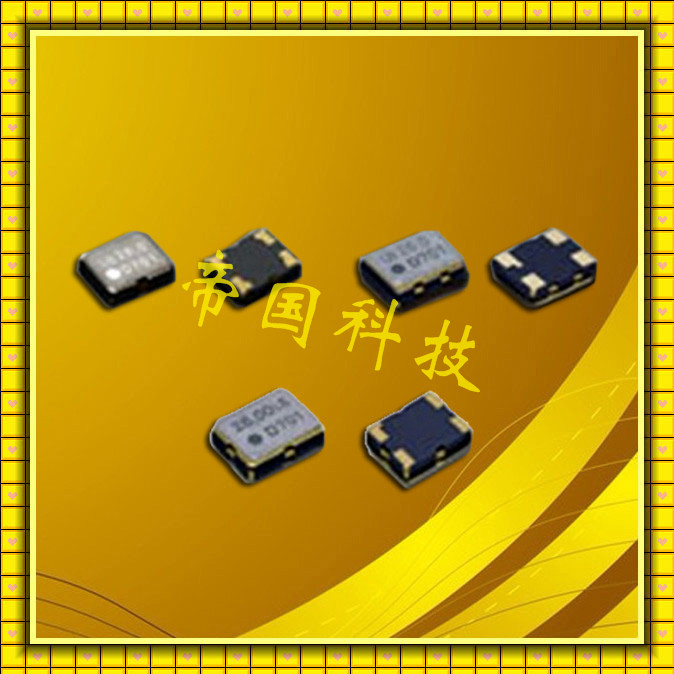

1XTW24000FCA,DSB321SCL晶振,低功耗藍牙模塊晶振

1XTW24000FCA與DSB321SCL晶振是低功耗藍牙模塊的核心時序組件,精準輸出24MHz晶振基準頻率,為藍牙信號的穩定收發提供可靠時鐘支撐.采用高集成度封裝設計,適配多數小型化低功耗藍牙模塊布局需求,兼具超低功耗特性,靜態電流損耗極低,可有效延長藍牙設備續航時間.產品經過嚴格的穩定性測試,在寬溫范圍(-40℃~85℃)內仍能保持優異的頻率精度,抗干擾能力強,適用于智能穿戴,無線傳感等低功耗藍牙應用場景.

1XTW24000FCA,DSB321SCL晶振,低功耗藍牙模塊晶振

原廠型號 Originalmodel：	1XTW24000FCA	品牌brand：	KDS
Manufacturer品牌	KDS	OperatingTemperature溫度	-40+85℃
Series型號	DSB321SCL	Current-Supply(Max)	-
Type類型	TCXO有源溫補晶振	PackageHeight高度	0.9mm
Frequency頻率	24M	Termination 腳位	4-pad
輸出方式 Output：	CMOS	PackageType 封裝類型	4-smd
Voltage-Supply電壓	3.3V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	1.5PP	安裝方式 Installation：	Surfacemount

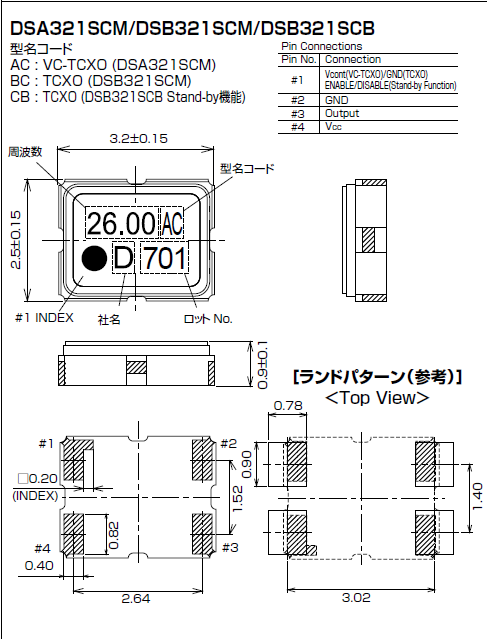

Size/Dimension尺寸	3225mm?	最小包裝數MPQ：	3000

1XTW24000FCA,DSB321SCL晶振,低功耗藍牙模塊晶振

KDS晶振	1TJH125DR1A0004	DST1610A	1610	32.768KHZ	12.5PF	20PPM
KDS晶振	TJF080DP1AA003	DST310S	3215	32.768KHZ	8PF	20PPM
KDS晶振	1TJF080DP1AA003	DST310S	3215	32.768KHZ	8PF	20PPM
KDS晶振	1TJF0SPDJ1AI00S	DST310S	3215	32.768KHZ	10.0PF	20PPM
KDS晶振	1TJF080DP1AI00P	DST310S	3215	32.768KHZ	8PF	20PPM
KDS晶振	1TJF090DP1AI007	DST310S	3215	32.768KHZ	9PF	20PPM
KDS晶振	1TJF0SPDP1AI008	DST310S	3215	32.768KHZ	10.0PF	20PPM
KDS晶振	1TJF125DP1AI009	DST310S	3215	32.768KHZ	12.5PF	20PPM
KDS晶振	1TJF090DP1AA00L	DST310S	3215	32.768KHZ	9PF	20PPM
KDS晶振	1TJF080DP1AA00K	DST310S	3215	32.768KHZ	8PF	20PPM
KDS晶振	1TJF0SPDP1AA00G	DST310S	3215	32.768KHZ	10.0PF	20PPM
KDS晶振	1TJF0SPDN1A000B	DST310S	3215	32.768KHZ	10.0PF	20PPM
KDS晶振	1TD125DGNS003	DT-26	206	32.768KHZ	12.5PF	20PPM
KDS晶振	1TD125DHNS036	DT-26	206	32.768KHZ	12.5PF	20PPM
KDS晶振	1TD125DHNS002	DT-26	206	32.768KHZ	12.5PF	20PPM
KDS晶振	1TD060DHNS014	DT-26	206	32.768KHZ	6.0PF	20PPM
KDS晶振	1TD125BHNS001	DT-26	206	32.768KHZ	12.5PF	10PPM
KDS晶振	1TD075BHNS001	DT-26	206	32.768KHZ	7.5PF	10PPM
KDS晶振	1TD125BFNS001	DT-26	206	32.768KHZ	12.5PF	10PPM
KDS晶振	1TD1001HNS001	DT-26	206	32.768KHZ	10.0PF	-6/+2PPM
KDS晶振	1TD1250HNS005	DT-26	206	32.768KHZ	12.5PF	30/40P
KDS晶振	1TC125DFNS030	DT-38	308	32.768KHZ	12.5PF	20PPM
KDS晶振	1TC125NFNS002	DT-38	308	32.768KHZ	12.5PF	1000PPM
KDS晶振	1TC125AFSS003	DT-38	308	32.768KHZ	12.5PF	5PPM
KDS晶振	1TC250E65	DT-38	308	32.768KHZ	12.5PF	+12/+28PPM
KDS晶振	1C240000AB0G	DSX321G	3225	40.000MHZ	10PF	10PPM
KDS晶振	1C241600CDAA	DSX321G	3225	41.6MHZ	10PF	30PPM
KDS晶振	1AJ043324C	SMD-49	11*4.6	4.332MHZ	12PF	20PPM
KDS晶振	1ZZNAE26000AB0J	DSX211SH	2016	26.000MHZ	7PF	10PPM
KDS晶振	1AJ17408AAGA	SMD-49	11*4.6	17.408MHZ	16PF	50PPM
KDS晶振	1AJ250004B	SMD-49	11*4.6	25.000MHZ	20PF	30PPM
KDS晶振	1ZZCAA24000BE0B	DSX211G	2016	24.000MHZ	10PF	20PPM
KDS晶振	1N227000BB0AK	DSX321G	3225	27.000MHZ	11PF	12PPM
KDS晶振	1N230000AB0C	DSX321G	3225	30.000MHZ	10PF	30PPM
KDS晶振	1N240000AB0J	DSX321G	3225	40.000MHZ	15PF	15PPM
KDS晶振	1XSE098304AR2	DSO321SR	3225	98.304MHZ	3.3V	50ppm
KDS晶振	1AJ100005B	SMD-49	11*4.6	10.000MHZ	12PF	50PPM
KDS晶振	1ZN326000AB0A	DSX221SH	2520	26.000MHZ	7PF	10PPM
KDS晶振	1AJ240006AEA	SMD-49	11*4.6	24.000MHZ	16PF	50PPM
KDS晶振	1AJ240006AK	SMD-49	11*4.6	24.000MHZ	16PF	30PPM
KDS晶振	1AJ240006BB	SMD-49	11*4.6	24.000MHZ	16PF	30PPM
KDS晶振	1AJ245765C	SMD-49	11*4.6	24.576MHZ	18PF	30PPM
KDS晶振	ZC08759	DSO211AH	2016	25.000MHZ	3.3V	50ppm
KDS晶振	1AR270002GA	SMD-49	11*4.6	27.000MHZ	12.9PF	20PPM
KDS晶振	1AR304002A	SMD-49	11*4.6	30.400MHZ	12PF	50ppm
KDS晶振	1XXD16367MAA	DSB211SDN	2016	16.367MHZ	3.3V	1.5ppm
KDS晶振	ZC12467	DSA211SDN	2016	16.32MHZ	3.3V	1.5ppm
KDS晶振	1XXB16367MAA	DSB221SDN	2520	16.367MHZ	2.8V	1.5ppm
KDS晶振	1XXB16369JFA	DSB221SDN	2520	16.369MHZ	3.3V	1.5ppm
KDS晶振	ZC09382	DSA535SG	5032	18.432MHZ	3.3V	1.5ppm
KDS晶振	ZC12456	DSB211SDN	2016	16.320MHZ	3.3V	1.5ppm
KDS晶振	1ZNA32000BB0B	DSX221G	2520	32.000MHZ	12PF	15ppm
KDS晶振	ZC12965	DSA321SDN	3225	23.04MHZ	3.3V	1.5ppm
KDS晶振	ZC13727	DSX221SH	2520	24.000MHZ	10PF	30ppm
KDS晶振	1ZNA16000AB0P	DSX221G	2520	16.000MHZ	9PF	10ppm
KDS晶振	X1H013000B81H	HSX531S	5032	13.000MHZ	8PF	10ppm
KDS晶振	X4S013000DA1H-W	HSX421S	4025	13.000MHZ	10PF	20ppm
KDS晶振	1XSE009600AV	DSO321SV	3225	9.6MHZ	3.3V	100ppm
KDS晶振	1XSE012000AR58	DSO321SR	3225	12.000MHZ	3.3V	50ppm
KDS晶振	1ZZNAE48000ZZ0R	DSX211SH	2016	48.000MHZ	7PF	20PPM
