規格型號：92310650
頻率：27MHZ
尺寸：3.2*2.5mm
PDF

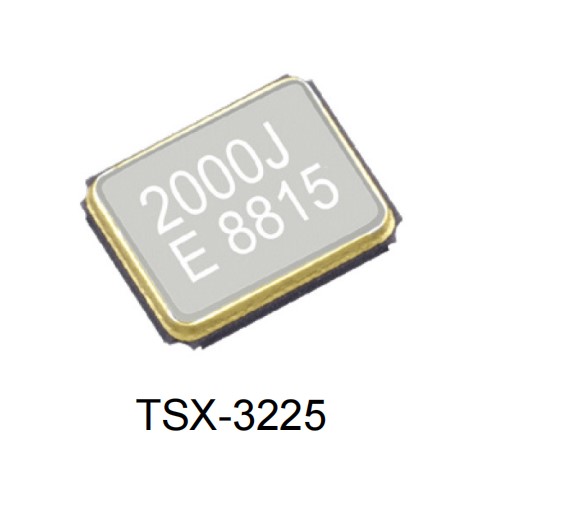

產品描述：TSX-3225/X1E0000210154/3225mm/27MHZ/無源晶體/10ppm/12pF，尺寸為3225mm，頻率為27MHZ，頻率容差10ppm，負載電容12pF,工作溫度-20to+75C，日本愛普生晶振，進口無源晶振，EPSON晶振，小體積晶振，輕薄型晶振，SMD晶...

TSX-3225/X1E0000210154/3225mm/27MHZ/無源晶體/10ppm/12pF，尺寸為3225mm，頻率為27MHZ，頻率容差10ppm，負載電容12pF,工作溫度-20 to+75°C，日本愛普生晶振，進口無源晶振，EPSON晶振，小體積晶振，輕薄型晶振，SMD晶振，石英晶體諧振器，無源貼片晶振，石英晶體，水晶振動子，藍牙無源晶體，手機晶振，藍牙專用晶振，無線局域網晶振，主控板時鐘晶振，X1E0000210116貼片晶體，X1E0000210136石英諧振器.

SMD晶振產品主要應用范圍：手機，藍牙，無線局域網，ISM波段無線電，主控板時鐘等領域。TSX-3225/X1E0000210154/3225mm/27MHZ/無源晶體/10ppm/12pF.

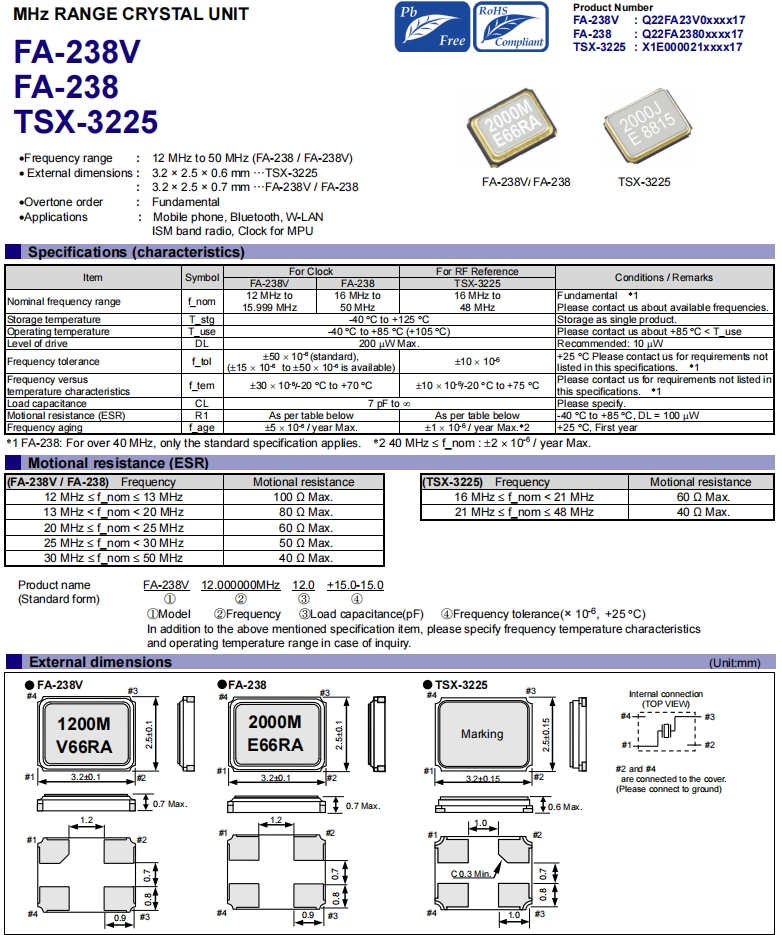

TSX-3225/X1E0000210154/3225mm/27MHZ/無源晶體/10ppm/12pF 參數表

項目

符號

For Clock

For RF Reference

條件

FA-238V

FA-238

TSX-3225

標稱頻率范圍

f_nom

12 MHz to
15.999 MHz

16 MHz to
50 MHz

16 MHz to
48 MHz

基本* 1
請與我們聯系可用的頻率。

儲存溫度

T_stg

-40 °C to +125 °C

作為單一產品存儲。

工作溫度

T_use

-40 °C to +85 °C (+105 °C)

請與我們聯系+85°C < T_use

驅動級別

200 µW Max.

建議:10µW

頻率公差

f_tol

±50 × 10-6 (standard),
(±15 × 10-6 to ±50 × 10-6 is available)

± 10 × 10-6

+25°C請與我們聯系
在本規范中列出。* 1

頻率和溫度特性

f_tem

±30 × 10-6/-20 °C to +70 °C

± 10 × 10-6/-20 °C to +75 °C

請聯系我們的要求未列出
這個規范。* 1

負載電容

7 pF to ∞

請說明。

運動阻力(ESR)

As per table below

-40 °C to +85 °C, DL = 100 µW

頻率老化

f_age

±5 × 10-6 / year Max.

± 1 × 10-6 / year Max.*2

+25°C，第一年year

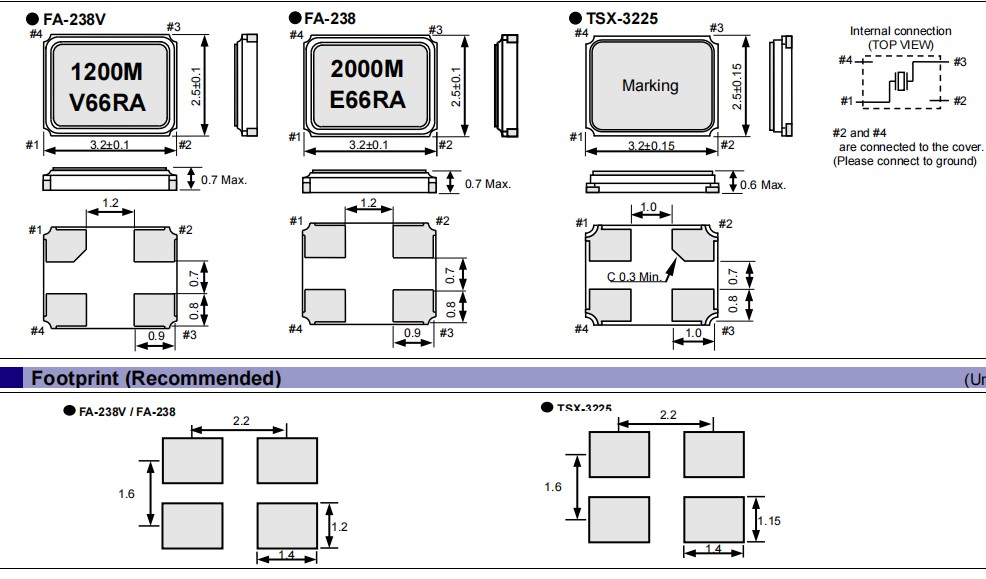

TSX-3225/X1E0000210154/3225mm/27MHZ/無源晶體/10ppm/12pF 尺寸圖

X1E0000210154晶振特點：

•頻率范圍:12MHz至50MHz (FA-238/FA-238V)

•外部尺寸:3.2×2.5×0.6 mm···TSX-3225

···FA-238V/FA-238

•泛音順序:基本

更多相關的日本EPSON晶振型號

編碼	尺寸	型號	頻率	負載	頻率 @+25°C	工作溫度
X1E0000210019	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0000210047	3.2 x 2.5 x 0.6mm	TSX-3225	20.000000 MHz	9 pF	+/-10 ppm	-40 to +105 °C
X1E0000210048	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	9 pF	+/-10 ppm	-40 to +105 °C
X1E0000210052	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	9 pF	+/-10 ppm	-40 to +85 °C
X1E0000210111	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
X1E0000210112	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0000210113	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
X1E0000210114	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	12 pF	+/-10 ppm	-20 to +75 °C
X1E0000210115	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	16 pF	+/-10 ppm	-20 to +75 °C
X1E0000210116	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	8 pF	+/-10 ppm	-40 to +85 °C
X1E0000210117	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	9 pF	+/-10 ppm	-40 to +85 °C
X1E0000210118	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
X1E0000210119	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	12 pF	+/-10 ppm	-40 to +85 °C
X1E0000210120	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	16 pF	+/-10 ppm	-40 to +85 °C
X1E0000210121	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
X1E0000210122	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0000210123	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
X1E0000210124	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	12 pF	+/-10 ppm	-20 to +75 °C
X1E0000210125	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	16 pF	+/-10 ppm	-20 to +75 °C
X1E0000210126	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	8 pF	+/-10 ppm	-40 to +85 °C
X1E0000210127	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	9 pF	+/-10 ppm	-40 to +85 °C
X1E0000210128	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
X1E0000210129	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	12 pF	+/-10 ppm	-40 to +85 °C
X1E0000210130	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	16 pF	+/-10 ppm	-40 to +85 °C
X1E0000210131	3.2 x 2.5 x 0.6mm	TSX-3225	25.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
X1E0000210132	3.2 x 2.5 x 0.6mm	TSX-3225	25.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0000210133	3.2 x 2.5 x 0.6mm	TSX-3225	25.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
X1E0000210134	3.2 x 2.5 x 0.6mm	TSX-3225	25.000000 MHz	12 pF	+/-10 ppm	-20 to +75 °C
X1E0000210135	3.2 x 2.5 x 0.6mm	TSX-3225	25.000000 MHz	16 pF	+/-10 ppm	-20 to +75 °C
X1E0000210136	3.2 x 2.5 x 0.6mm	TSX-3225	25.000000 MHz	8 pF	+/-10 ppm	-40 to +85 °C
X1E0000210137	3.2 x 2.5 x 0.6mm	TSX-3225	25.000000 MHz	9 pF	+/-10 ppm	-40 to +85 °C
X1E0000210138	3.2 x 2.5 x 0.6mm	TSX-3225	25.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
X1E0000210139	3.2 x 2.5 x 0.6mm	TSX-3225	25.000000 MHz	12 pF	+/-10 ppm	-40 to +85 °C
X1E0000210140	3.2 x 2.5 x 0.6mm	TSX-3225	25.000000 MHz	16 pF	+/-10 ppm	-40 to +85 °C
X1E0000210141	3.2 x 2.5 x 0.6mm	TSX-3225	26.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
X1E0000210142	3.2 x 2.5 x 0.6mm	TSX-3225	26.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0000210143	3.2 x 2.5 x 0.6mm	TSX-3225	26.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
X1E0000210144	3.2 x 2.5 x 0.6mm	TSX-3225	26.000000 MHz	12 pF	+/-10 ppm	-20 to +75 °C
X1E0000210145	3.2 x 2.5 x 0.6mm	TSX-3225	26.000000 MHz	16 pF	+/-10 ppm	-20 to +75 °C
X1E0000210146	3.2 x 2.5 x 0.6mm	TSX-3225	26.000000 MHz	8 pF	+/-10 ppm	-40 to +85 °C
X1E0000210147	3.2 x 2.5 x 0.6mm	TSX-3225	26.000000 MHz	9 pF	+/-10 ppm	-40 to +85 °C
X1E0000210148	3.2 x 2.5 x 0.6mm	TSX-3225	26.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
X1E0000210149	3.2 x 2.5 x 0.6mm	TSX-3225	26.000000 MHz	12 pF	+/-10 ppm	-40 to +85 °C
X1E0000210150	3.2 x 2.5 x 0.6mm	TSX-3225	26.000000 MHz	16 pF	+/-10 ppm	-40 to +85 °C
X1E0000210151	3.2 x 2.5 x 0.6mm	TSX-3225	27.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
X1E0000210152	3.2 x 2.5 x 0.6mm	TSX-3225	27.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0000210153	3.2 x 2.5 x 0.6mm	TSX-3225	27.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
X1E0000210154	3.2 x 2.5 x 0.6mm	TSX-3225石英晶體	27.000000 MHz	12 pF	+/-10 ppm	-20 to +75 °C
X1E0000210155	3.2 x 2.5 x 0.6mm	TSX-3225	27.000000 MHz	16 pF	+/-10 ppm	-20 to +75 °C
X1E0000210156	3.2 x 2.5 x 0.6mm	TSX-3225	27.000000 MHz	8 pF	+/-10 ppm	-40 to +85 °C
X1E0000210157	3.2 x 2.5 x 0.6mm	TSX-3225	27.000000 MHz	9 pF	+/-10 ppm	-40 to +85 °C
X1E0000210158	3.2 x 2.5 x 0.6mm	TSX-3225	27.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
X1E0000210159	3.2 x 2.5 x 0.6mm	TSX-3225	27.000000 MHz	12 pF	+/-10 ppm	-40 to +85 °C
X1E0000210160	3.2 x 2.5 x 0.6mm	TSX-3225	27.000000 MHz	16 pF	+/-10 ppm	-40 to +85 °C
X1E0000210161	3.2 x 2.5 x 0.6mm	TSX-3225	32.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
X1E0000210162	3.2 x 2.5 x 0.6mm	TSX-3225	32.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0000210163	3.2 x 2.5 x 0.6mm	TSX-3225	32.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
